Mini Lathe Small CNC Lathe Ck6132 China Flat Bed CNC Lathe Machine
Description:
CK6132 is a high-precision, compact numerical control lathe designed for small to medium-sized workpiece processing. It integrates advanced CNC technology, mechanical stability, and user-friendly operation, making it an ideal choice for precision machining in various industries.
In terms of structural design, the CK6132 adopts a high-rigidity bed made of high-quality cast iron, which undergoes strict aging treatment to eliminate internal stress. This ensures excellent stability and vibration resistance during high-speed operation, laying a solid foundation for high-precision machining. The spindle system is equipped with high-precision bearings, supporting a maximum spindle speed that meets the needs of both rough machining and fine finishing. The Z-axis and X-axis feed systems adopt high-precision ball screws and linear guides, minimizing backlash and ensuring smooth, accurate feed movements.
|
PROJECY
|
UNIT
|
CK6132
|
|
Max. Swing over bed
|
mm
|
400
|
|
Max. Swing Dia.over slide
|
mm
|
120
|
|
Max. Turning length
|
mm
|
350
|
|
Spindle drawing pipe through hole diameter
|
mm
|
49
|
|
Spindle speed range
|
rpm
|
100-3000
|
|
Spindle motor power
|
kw
|
4
|
|
Spindle head type
|
/
|
A2-5
|
|
Taper of spindle bore
|
/
|
GB21°
|
|
X axis travel
|
mm
|
750
|
|
Z axis travel
|
mm
|
510
|
|
X/Z axis feed
|
mm
|
10/10
|
|
Chuck diameter
|
mm
|
160
|
|
Pump power
|
kw
|
380v/90w
|
|
Repeat positioning accuracy
|
mm
|
0.005/0.005
|
|
Tool holder
|
/
|
Four-station electric tool post
|
|
Tool size
|
mm
|
20*20
|
|
Tailstock quill taper
|
/
|
MT4#
|
|
Tailstock quill travel
|
mm
|
Optional
|
|
Tailstock form
|
/
|
Optional
|
|
Weight
|
kg
|
1500
|
|
Dimension(L*W*H)
|
mm
|
2100*1500*1700
|
|
Standard Configuration:
|
Optional Configuration:
|
|
1) System:GSK928TD-L, servo motor and drive.
2) Pneumatic collet.
3) Gang type tool post.
4) Cooling system.
5) Lighten system.
6) Automatic lubrication system.
|
1).CNC system: GSK, Fanuc, KND, GUNT.
2).Hydraulic chuck, Pneumatic chuck .
3).Hydraulic tailstock, Pneumatic tailstock.
4).4/6/8-station electric turret.
5). Automatic bar feeder, Chip conveyor.
|
|
|

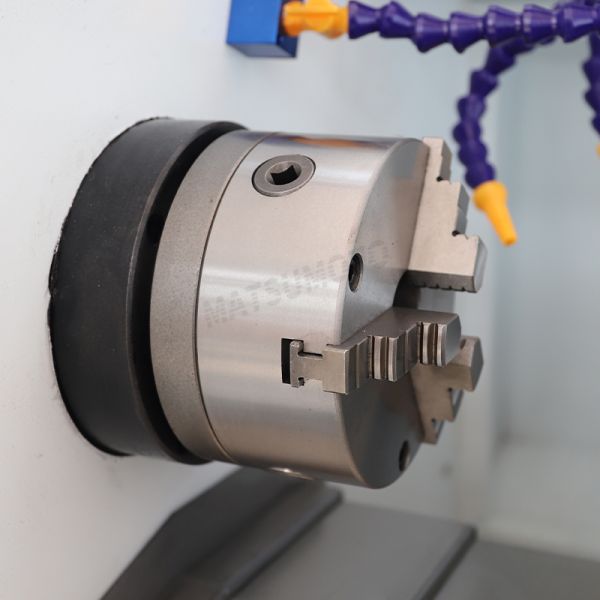

PNEUMATIC CHUCK
Strong clamping during work, long service life.
|
|
|
ROW TOOL POST
High positioning accuracy, stable and reliable, simple structure, convenient maintenance.
|
|
|
CNC CONTROL SYSTEM
Standard:GSK
Optional:FANUC/MITSUBISHI etc.
|
Auto cnc machine programming high precision metal lathe CK6132 for sale uses the design of mechanical and electrical integration,generous appearance beautiful, reasonable structure, easy operation. The machine adopts the integral bed foot, the stability is better. Wear-resistant cast iron after ultra-audio quenching treatment, to ensure the accuracy of the equipment and stability. The fully enclosed cover ensures that a drop of water does not leak out of the machine.
Advantages:
1. High Processing Precision
The combination of high-precision ball screws, linear guides, and a high-stability spindle system ensures that the CK6132 achieves excellent positioning accuracy and processing precision. It can stably process workpieces with tight tolerance requirements, reducing scrap rates and improving product quality.
2 Compact Structure and Space-Saving
As a small CNC lathe, the CK6132 has a compact overall structure, occupying a small floor area. It is suitable for small workshops, laboratories, or production lines with limited space, while maintaining powerful processing capabilities.
